for non-wash-tunnel compatibel beds (IPx4)

VDS-IPx4

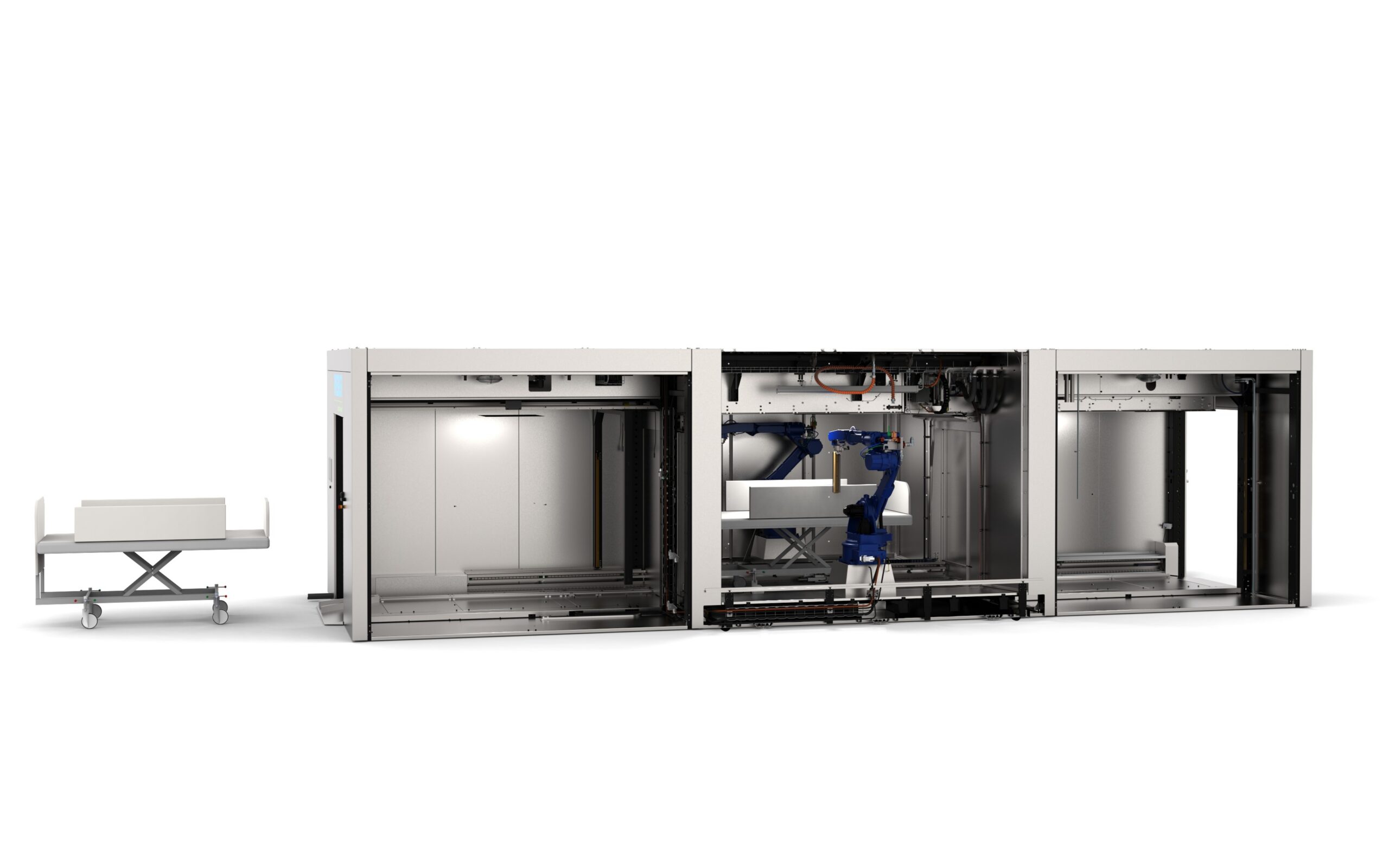

Three-cabin washer-disinfector for chemical-free steam disinfection of hospital beds and mattresses. Fully automatic ergonomic mattress handling and robot-controlled precision steam application. Steam-only process without water pre-wash, enabling automated processing of non-wash-tunnel compatible (IPX4) beds.

6-8 min

Cycle Time

6 L

Water per Cycle

4.5 kWh

Energy per Cycle

A₀ 60

Validated Disinfection

Automatic

Mattress Handling

Options
Automated input/output – Buffer storage for dirty and clean beds for 24/7 operation without staff.

Three-Cabin Process

Automated cleaning, disinfection, and drying in three specialized cabins for optimal results

Scanning

🛏️

Bed Frame and Mattress Bed with mattress is scanned to verify the correct position (highest height, mattress platform flat, side rails raised). The bed is then identified from the database, allowing the system to automatically select the correct robot program.

Steam Disinfection

🛏️

Bed Frame Two robots with steam torches disinfect the bed frame on all sides, followed by immediate drying using compressed air.

💤

Mattress The mattress is automatically lifted from the bed, allowing a dedicated mattress steam unit to ensure complete coverage, validated disinfection and immediate drying.

Final Handling

🛏️

Bed Frame The bed frame is automatically transported to cabin 3, ready for mattress reloading.

💤

Mattress Vacuum lift returns dried mattress to bed.

Why Chemical-Free Matters

Steam disinfection delivers superior results while reducing operational costs and environmental impact

Validated A0 60 Performance

ISO 15883 compliant steam disinfection with documented validation for consistent, reliable results.

Fully Automated Process

Automated bed & mattress handling with vacuum lift system. Minimal operator intervention required.

Low Resource Consumption

Only 6L water and 4 kW per cycle. Zero chemicals. Lowest environmental footprint in class.

Expert Installation & Lifetime Support

Every VDS-IPX4 system includes comprehensive installation, validation, and training by Weber’s certified engineers.

Complete on-site installation
ISO 15883 validation
Staff training
Products
Technology
References

Contact our support team→

Technical Specifications

Complete technical data for VDS-IPX4 washer-disinfector system

Dimensions & Capacity

Machine Dimensions (L × W × H): 10286 × 4000 × 2700 mm
Bed Dimensions max. (L × W × H)): 2450 × 1100 × 1330 mm
Mattress Length: 1900 – 2100 mm
Mattress Width: 850 – 925 mm
Mattress Thickness: 120 – 200 mm
Floor Load: 200 kg / m²
Pit: Not required

Utilities - Requirements

Electrical Power – VDS: Peak load: 32 A
Electrical Power – VDS + Steam Unit: Peak load: 125 A
Steam Supply: Saturated steam, 80 kg/h, 3.5–5.5 bar
Compressed Air: 6 bar, max flow 1600 L/min
Water Supply: RO water, hardness <0.1 °dH, pH 5–8.5
Ventilation Supply: 2000 m³/h

Utilities – Consumption

Energy Consumption: 4.5 kWh / cycle
Water Consumption: 6 L / cycle
Chemical Consumption: None (chemical-free process)

Performance Data

Total Cycle Time
Pre-Wash Duration: Manual action
A₀ Value: >60 (defined by
validated robot speed
