for wash-tunnel compatibel beds (IPx6)
VDS-IPX6

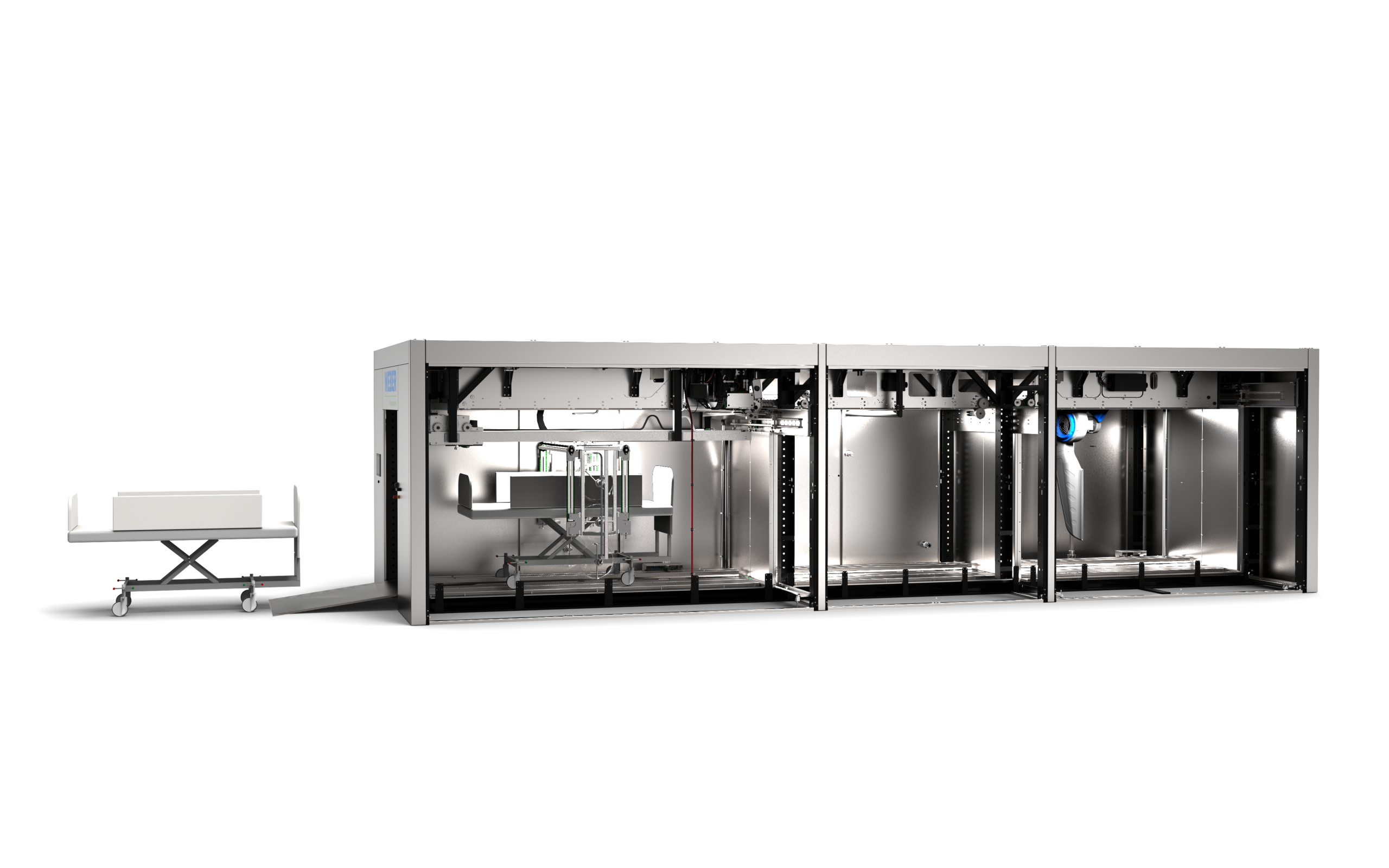

Three-cabin washer-disinfector for hospital beds and mattresses. Bed frames are cleaned using a cold-water high-pressure pre-wash followed by steam disinfection with adjustable A0 value and drying. Mattresses are handled automatically and ergonomically, disinfected with steam in the upper cabin section and subsequently dried.
Options
Automated input/output – Buffer storage for dirty and clean beds for 24/7 operation without staff.
Three-Cabin Process
Automated cleaning, disinfection, and drying in three specialized cabins for optimal results
Cold Water Pre-Wash
Steam Disinfection
Drying
Why Chemical-Free Matters
Steam disinfection delivers superior results while reducing operational costs and environmental impact
Validated A0 60 Performance
ISO 15883 compliant steam disinfection with documented validation for consistent, reliable results.
Fully Automated Process
Automated bed & mattress handling with vacuum lift system. Minimal operator intervention required.
Low Resource Consumption
Cold-water pre-wash, zero chemicals and efficient steam disinfection. Designed for a low environmental footprint.
Expert Installation & Lifetime Support
- Complete on-site installation
- ISO 15883 validation
- Staff training
- Products
- Technology
- References
Technical Specifications
Complete technical data for VDS-IPX4 washer-disinfector system
Dimensions & Capacity
- Machine Dimensions (L × W × H)
- 10286 × 4000 × 2700 mm
- Bed Dimensions max. (L × W × H))
- 2450 × 1100 × 1330 mm
- Mattress Length
- 1900 – 2100 mm
- Mattress Width
- 850 – 925 mm
- Mattress Thickness
- 120 – 200 mm
- Floor Load
- < 200 kg / m²
- Pit
- Not required
Utilities - Requirements
- Electrical Power – VDS
- Peak load: High pressure water skid 63 A
+ drying blowers 80 A - Electrical Power – VDS + Steam Unit
- Peak load: High pressure water skid 63 A
+ drying blowers 80 A
+ steam generator 125 A - Steam Supply
- Saturated steam, 80 kg/h, 3.5–5.5 bar
- Compressed Air
- 6 bar, max flow 1400 L/min
- Water Supply
- RO water, hardness <0.1 °dH, pH 5–8.5
- Ventilation Supply
- 2000 m³/h
Utilities – Consumption
- Energy Consumption
- 7.1 kWh / cycle
- Water Consumption (cleaning | steam)
- 35 | 12 L / cycle
- Chemical Consumption
- None (chemical-free process)
Performance Data
- Total Cycle Time
- A₀ Value
- >60 (adjustable)
